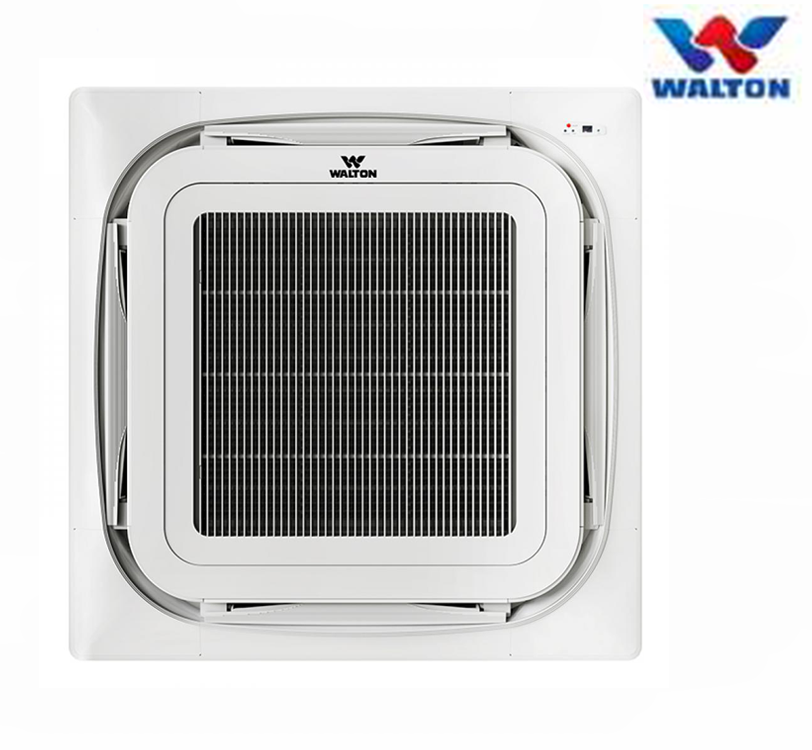

WCN-60K-RXXXE

Air Conditioner Type

Cassette Air Conditioner

Function

Cooling

Cooling Capacity

60000 BTU/hr

Compressor

Scroll

Refrigerant

R-410a

Function

Cooling

BTU/hr

60000

Rated Voltage

380V-420V ~ 50Hz

Rated Input Power (W)

5450

Rated Current (A)

9.66

Cooling Capacity (W)

17584

COP

3.22

Compressor Type

Scroll (Fixed Speed)

Refrigerant Type

R-410a

Refrigerant Amount (Kg)

2.9

Operating Range (Ambient Temperature)

18˚C to 43˚C

Condenser Type

Copper Tube Condenser

Indoor Fin Type

Slit Fin

Outdoor Fin Type

Slit Fin

Maximum Pipe Length

30m

Turbo Mode (Faster Cooling)

No

Turbo Mode (Maximum Cooling)

No

Eco Mode

No

Auto Operation

Yes

Dry Mode

Yes

Fan Mode

Yes

Speed Setting

Yes (Auto, High, Medium, Low)

Auto Restart

Yes

Comfort Colling

Yes

Timer

Yes

Sleep

Yes

Display Type

LCD

Display Back Light

Yes

Operation/Control

Via IR (Infrared Ray)

Child Lock

No

Temperature Unit Change

Yes (Degree Celsius to Fahrenheit)

Auto UP-Down Swing

Yes

Auto Left-Right Swing

No

Indoor Dimensions (mm) [L×W×H]

Unit- 975 x 975 x 305

Packing- 1040 x 1040 x 315

Outdoor Dimensions (mm) [L×W×H]

Unit- 917 x 330 x 1260

Packing- 1030 x 400 x 1290

Net Weight (Indoor) (Kg)

41 ± 1

Gross Weight (Indoor) (Kg)

47 ± 1

Net Weight (Outdoor) (Kg)

103 ± 1

Gross Weight (outdoor) (Kg)

115 ± 1

Net Weight (Indoor Front Panel) (Kg)

6.00 ±0.25

Gross Weight (Outdoor Front Panel) (Kg)

8.00 ±0.25

Front panel Unit Dimension (mm) [LxWxH]

1140 x 1140 x 75

Guarantee Information

Product Replacement Guarantee: 1 Year

(Note: if there are manufacturing faults in heat exchanger & compressor)

Warranty Information

For Commercial Usage

Compressor Warranty: 5 Years

Spare Parts Support: 2 Years

After Sales Service: 1 Year (Free)

Terms & Conditions

1. This warranty does not cover the following cases -

      i) The warranty will be invalid if the product is misused, neglected, rented on a commercial basis. The warranty also will be invalid if repaired, replaced modified by an unauthorized service personnel.

      ii) If the product serial number/barcode is removed, altered or duplicated, the warranty will be invalid.

2. This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel.

3. Authority reserves the right to change, extend, correct, stop or cancel the warranty period without any prior notice.

4. After sales free service will be applicable only at authorized service points.
